Automatic Temperature Control LPG Natural Gas Infrared Brooder Heater For Chicken
Company profile
Established in 2005, Chongqing Haodong Technology Co., Ltd. is a professional manufacturer specializing in the research, development and production of infrared catalytic gas burners & heaters.
Mission
As the "Efficiency, Energy saving, Environmental protection" technical characteristics, we successfully developed and produced the industrial infrared catalytic burner, BBQ heating parts, poultry brooder and other related products and accessories. They are widely used in the food baking, industrial painting, glass annealing, low temperature heat treatment, ceramic embryo firing, livestock heating industries.
Description
In broiler houses and rearing houses hens are completely absent, this is where Gas brooders take over this heating task. The Gas infrared brooders are therefore an important and essential part of a smooth transition from the incubator to a poultry house for day old chicken during the first weeks of a chicken’s life. After that period, a chicken can generally produce sufficient heat itself, so that it no longer needs additional heating.
Specifications
| MODEL | Dimension | Weight | Gas Type | Heat Output | Consumption |
| | mm | kg | | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) |
| THD2606 | 320*270*130 | 1.7 | NG/LPG | 2.46 | 2116 | 0.26 | 0.18 |
| THD2608 auto ignition | 320*270*130 | 2.7 | NG/LPG | 2.46 | 2116 | 0.26 | 0.18 |
| THD6806 | 675*235*95 | 2.8 | NG/LPG | 3.9 | 3400 | 0.39 | 0.27 |
| THD6808 auto ignition | 675*235*95 | 3.7 | NG/LPG | 3.9 | 3400 | 0.39 | 0.27 |
| THD5606 | 500*500*180 | 1.4 | NG/LPG | 2.46 | 2116 | 0.26 | 0.18 |

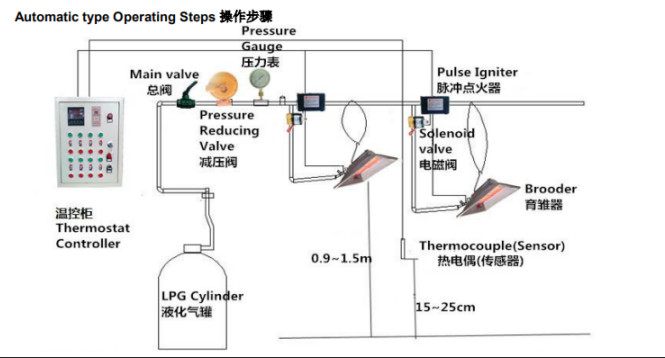

System Overview
Usually the whole system includes:
1. Thermostat controller: setting temperature, and control the working of heaters, its customized to make control 1-40 sets heaters;
2. Pressure reducing valve: to get the appropriate gas pressure;
3. Pressure gauge: to reflect the gas pressure, it's important for the gas equipment;
WHY CHOOSE US?
1. Advantages

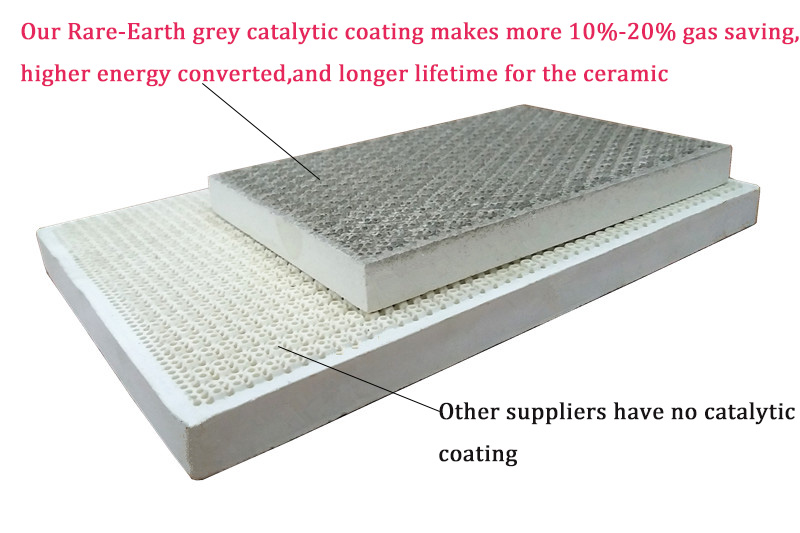

♦Energy saving: 10%-20% gas saving than other non-catalytic infrared gas heater;
♦ Conveyor rate: above 95%
♦Reliability, Silent, light and compact
♦Lower emissions to the air in the barn, CO≤80ppm;NOx≤10ppm;CHx≤50ppm
♦Low maintenance
♦ Withstands high pressure washing
♦Flame-out protection device
♦Long useful time: ≥11000hr
2. Company

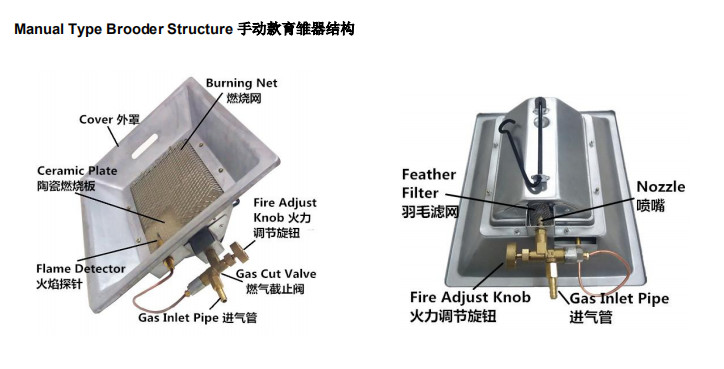

Manual model THD2606/THD6806
Operation of manual model
Application
Widely used for kinds of poultry farming, chick house, piglet house, birds brooding, patio, warehouse heating etc.
Product Tags:
|
|
LPG Natural Gas Infrared Brooder Heater Automatic Temperature Control For Chicken Images
|
